1KVA - 2KVA Smart Line Interactive ATM UPS Uninterruptable Power Supply

China 1KVA - 2KVA Smart Line Interactive ATM UPS Uninterruptable Power Supply supplier

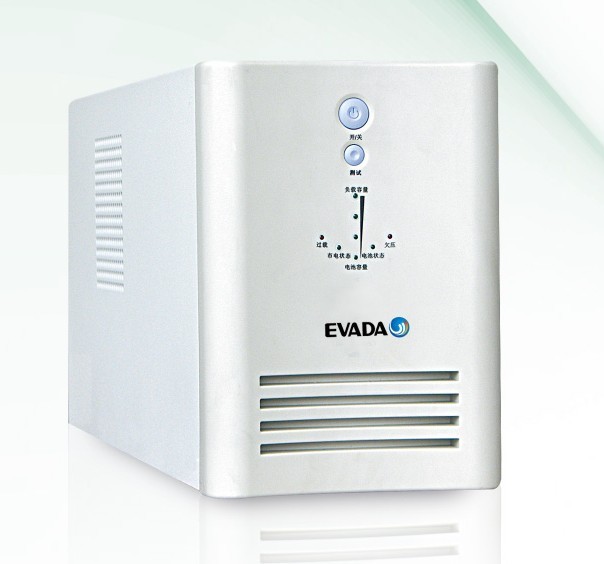

Large Image :  1KVA - 2KVA Smart Line Interactive ATM UPS Uninterruptable Power Supply

Product Details:

Place of Origin: Fujian,China
Brand Name: Evada
Certification: ISO/CE/CF/FCC
Model Number: HT

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: carton packing, wooden packing
Delivery Time: After receiving payment
Payment Terms: T/T,Western union
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description





1KVA - 2KVA Smart Line Interactive ATM UPS Uninterruptable Power Supply



Application:



Personal computer.Computer center.Data center.Network center.Other emergency equipment




Main Features:



♦  MCU is adopted in the core technology, the use of DC/AC and AC/DC two-way transformation technology, provide the pure sine wave output.

♦  The use of intelligent high-current two-stage charging technology, can effectively extend the life of the battery.

♦ It can change battery in case of uninterrupted power supply.Maintenance for battery is simple and reliable.

♦  CPU intelligent centralized control technology, the UPS output voltage is more stable.It has perfect protection function, whether it is UPS overload, short circuit, low battery voltage, overheating, the system will protect automatically.

♦  Standard RS232 communication interface. By monitoring software, you can debug and monitor remote online UPS operation directly. Simplify network management, and improve reliability of system.

♦ Can be used as a stand-alone SNMP network nodes, with monitoring software, network monitoring function come true.




Specification:




MODEL

HT10

HT10L

HT20

HT20L

Capacity

(VA)

1000

2000

OUTPUT

   Voltage

220Vac±1%(battery mode)

Frequency

50Hz±0.1Hz(battery mode)

   Waveform

        Pure sine wave

THD

<3%

Power factor

0.7

INPUT

Frequency

47Hz~53Hz(setting)

Voltage

168Vac-272Vac

Standby time

Full load

10minutes

Any configuration

10minutes

Any

configuration

Half load

25minutes

Any configuration

25minutes

Any

configuration

BATTERY

Type

Sealed lead acid, maintenance free

Nominal voltage

24Vdc

48Vdc

Efficiency

DC TO AC

>80%

Noise

Distance

Full load<50dB(A)

Alarm function



Light and buzzer alarm

Automatic Restart



Auto restart when AC recovery

DC Start



Software setting

open/close

Auto Start-up

Protection

Overload

Utility mode:≥200% for 3 second;  ≥100% for

10minutes

Battery mode:≥150% for 3second;≥100% for

 60 seconds

Over Voltage/
 low Voltage

Latching Inverter Shut down

Short circuit

Latching Inverter Shut down

Battery discharge

output will be automatically closed

EMC



GB 9254

Communication interface

RS232/LAN

Outage,low battery voltage,Remote control UPS power

 off and Real-time monitoring communication

Environment

temperature

0~40℃

temperature

0-95%(without condensing)

 Mechanical Data

Dimension
(W×D× H)mm

150×445×220

150×445×220

Weigh(kg)

18

13

26

16
